I’m building a small embedded project that needs a reliable RS232 interface, but I’m a bit lost on which transceivers, connector types, and voltage levels make the most sense. I’d like something easy to source, not overly expensive, and compatible with common microcontrollers and PCs. What RS232 hardware options and design tips would you recommend so I don’t run into signal integrity or compatibility issues later?
For a small embedded RS232 project you basically have three decisions: transceiver IC, connector, and whether you’ll ever want network access.
1. Transceiver choices
If you just need classic 3.3 V or 5 V MCU to real RS232 levels:
-
MAX3232
- Works at 3.0 to 5.5 V, so it covers most MCUs.
- Dirt‑cheap clones everywhere, modules on Amazon/Aliexpress, breakout boards on eBay.
- Handles typical baud rates for “normal” embedded debug and control.
- Easiest path: grab a prebuilt “MAX3232 board” and wire TX/RX + GND.
-
SP3232 / ST3232 / ADM3202
- Same idea as MAX3232, different vendors. Often better availability or cheaper in some regions.
- Look for versions with integrated charge‑pump caps or tiny external caps to keep the BOM small.
-
Industrial / robust options (if your environment is noisy or long cable runs)
- Look at TI TRS3232, MAX232E/EM, or protected versions like MAX3243 that have ESD and fault protection.
- Slightly pricier but less drama when someone hot‑plugs a 20 m cable during a thunderstorm.
Avoid the ancient “MAX232 at 5 V only” unless you know you’re running 5 V logic. Mixed‑voltage headaches aren’t worth saving 20 cents.
2. Connector types
Depends on who or what you’re talking to:
-
DE‑9 (incorrectly called DB9)
- Standard for most modern RS232 gear.
- Easy to find panel mount jacks, premade cables, and USB‑RS232 dongles.
- If you want other people to plug into this with minimal confusion, use a DE‑9 female on your box.
-
Screw terminals or 2.54 mm headers
- Fine for “internal” or hobby projects where you just want GND / TX / RX accessible.
- Great if the other side is a USB‑TTL cable rather than true RS232.
-
RJ45
- Used by some networking gear and consoles. Only worth it if you are intentionally matching that ecosystem.
For a “small embedded project” that still feels “real product,” a DE‑9 female on the enclosure tied to a MAX3232 board is the usual sweet spot.
3. Voltage levels & wiring
- MCU side: 3.3 V or 5 V TTL, single‑ended, 0 V and VCC logic.
- RS232 side: ±5 V to ±12 V typical, inverted relative to TTL.
- Make sure you connect TX ↔ RX, RX ↔ TX, and share ground.
- If you only need 3‑wire (TX, RX, GND), ignore RTS/CTS unless you actually need hardware flow control.
If you’re only doing config/debug or low‑rate control, 9600 or 115200 bps is usually fine. Long cables or noisy environments benefit from lower rates and a better transceiver.
4. Do you need network / remote access later?
If there’s even a tiny chance you’ll want to reach this device over LAN or the internet, think ahead now.
In that case, look at a Serial to Ethernet Connector solution or a small serial device server so your RS232 gear can show up as a TCP or virtual COM port from anywhere. For projects that need to bridge classic serial with modern networks, a good approach is to use an in depth guide to connecting RS232 over Ethernet which explains how to map the serial signals onto Ethernet and access them from PCs or cloud services.
That kind of RS232 to Ethernet bridging makes it way easier to integrate your little embedded box into dashboards, logging systems, or remote tools with minimal redesign.
Simple “just work” recipe
- MCU at 3.3 V
- MAX3232 module
- DE‑9 female panel connector
- 3‑wire interface + optional RTS/CTS if you ever hit throughput issues
That combo is cheap, easy to source, and reliable enough that you probably won’t have to think about RS232 again unless you actually want to.
For a small embedded RS232 interface you don’t actually have that many sane choices, which is kind of nice.
@caminantenocturno already covered the “classic” MAX3232 & friends pretty well, so I’ll hit the parts they didn’t dive into and disagree a bit here and there.
1. Transceiver choices beyond the default MAX3232
MAX3232‑type parts are fine, but there are a few details that matter in practice:
a) Ultra‑low power vs “normal”
If you’re battery powered or sleeping most of the time, look at:
- TI TRS3232E, TRS3237, or similar “auto power‑down” RS232 chips
- They idle at microamps when the line is quiet
- Some wake up on activity, so you don’t have to manually gate power
This can matter more than people admit. A cheap MAX3232 clone can sit there leaking milliamps forever.
b) Pin‑compatible modern parts
A lot of clone MAX3232 modules are unstable above 115200 baud, especially at lower supply voltages. If you care about higher baud (250k, 500k, 921600, etc), check datasheets from:
- TI (TRS32xx family)
- Analog Devices (ADM32xx family)
I’ve had “mystery” MAX3232 boards drop characters at 230400 and above, while a branded TI part on the same board was rock solid.
c) Integrated vs external caps
If you’re tight on PCB space, look for versions with integrated charge pump capacitors or very small external ones. It simplifies routing and reduces layout stupidity.
2. Connector strategy: think about who is plugging in
I half‑agree with @caminantenocturno on the DE‑9. It is the standard, yes. But:
Use a DE‑9 only if you actually need real RS232 compatibility
If all you ever talk to is a laptop via a random USB‑serial dongle, then sure, DE‑9 female on your enclosure is the least confusing.
If instead this is more of an internal dev or lab tool, another option:
- Bring TTL‑level UART out to a 0.1 in header (GND / TX / RX / maybe 5 V)
- Use a USB‑TTL cable (FTDI, CP2102, CH340) for direct PC connection
- Skip true RS232 levels entirely
That avoids the whole ±12 V world, saves the transceiver, and is one less part to source. A lot of “RS232” projects don’t actually need RS232, they just need “something I can plug into a PC.”
If you do commit to real RS232:
- DE‑9 female on the product
- Decide clearly if you are DCE or DTE and stick to it
- Laser‑etch a tiny pinout or at least “TX/RX/GND only” near the connector if you drop handshaking
3. Voltage levels & isolation (the part people skip)
RS232 spec says ±3 V to ±15 V is legal, not just “±12 V,” which is why these charge‑pump chips can live off a 3.3 V rail and still be compliant enough.
Two things worth considering that weren’t really hit:
a) Protection & ESD
Hot‑plugging long cables in noisy enviroments will eventually kill a cheap clone. If your project will see:
- Cables over a few meters
- Industrial environments
- People plugging in random crap
then transceivers with real ±15 kV ESD and fault protection save you returns and weird intermittent bugs.
b) Galvanic isolation
If your embedded board is grounded differently than the PC side, or you’re in a heavy industrial setting:
- MCU UART → digital isolator → RS232 transceiver
- Or use ready‑made isolated RS232 modules
This prevents ground loops and “why did my board reset every time someone touched the cable” kind of nonsense.
4. Flow control & signal count
Everyone loves the “3‑wire only” mantra (TX, RX, GND). It’s fine for config, debug, and slow control.
You might want RTS/CTS if:
- You’re pushing high baud rates over long cables
- The far end has a small receive buffer
- You expect bursts of data
If in doubt, reserve the pins / connector contacts now, even if you don’t route the traces in rev 1. It is annoying to redesign a PCB just to add RTS/CTS later.
5. Thinking ahead to remote access
Here I strongly agree with @caminantenocturno: if there is even a small chance you’ll want remote access, design around that mental model early.
Concrete options:
- Onboard small MCU (or your main MCU) that bridges UART to TCP
- External “serial device server” box
- Software on the host side like Serial to Ethernet Connector that exposes your RS232 port over the network as a virtual COM port
That last one is useful if you want to keep your device simple (just classic RS232) but still control or monitor it remotely from other PCs or over VPN/cloud. It saves you from reinventing TCP, authentication, and reconnection logic on your embedded side.

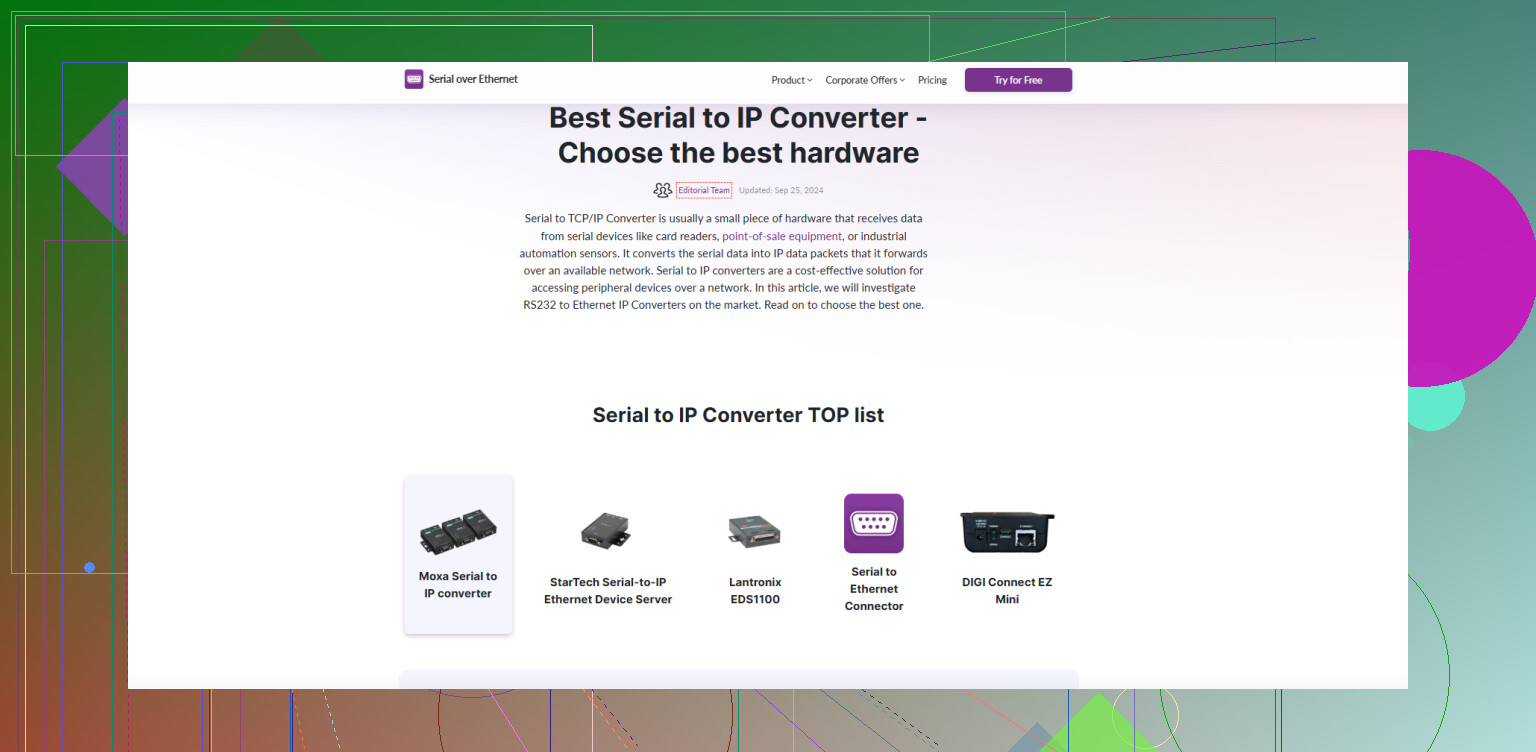

For anyone exploring that path, you can check out advanced tools for managing serial ports over Ethernet to turn a local RS232 into something accessible across the network without rewriting your firmware.
6. What I’d actually do for a “small embedded project”
If it really must be RS232, not just UART:
- MCU at 3.3 V
- A non‑clone TRS3232 or similar low‑power RS232 transceiver
- DE‑9 female on the panel, with at least TX, RX, GND and optionally RTS/CTS connected
- TVS diode array on the RS232 lines if this thing can leave your desk
- Silkscreen or small label showing pinout and that it’s RS232, not TTL
If this is just for dev/debug and you control both ends:
- Skip RS232 entirely
- Bring UART out as 3‑pin header
- Use USB‑TTL cable
- If someday you need Ethernet access, use Serial to Ethernet Connector on the PC side to share that COM port over the network
That combo keeps sourcing simple, avoids weird clone issues, and gives you an upgrade path if you later discover “oh no, we need to control this thing from 3 rooms away over WiFi.”
2 Likes
You’re basically choosing between “real RS‑232 as a physical port” and “UART as a service” that may live on a network. @sonhadordobosque and @caminantenocturno covered the classic path very well, so I’ll focus on the tradeoffs they did not push hard.
1. When RS‑232 might be the wrong answer
If the other side is under your control (your own board, your own test jig, your own PC), a lot of projects are happier with:
- Raw UART on a 3‑pin or 4‑pin header
- USB‑UART cable for development
- Later, a small on‑board USB device (CDC) so the PC just sees a COM port
That skips:
- The RS‑232 transceiver IC
- The DE‑9 connector
- The fun of inversion and ± voltage levels
RS‑232 still makes sense if:
- You must plug into legacy industrial gear
- You expect people to use generic USB‑RS‑232 adapters
- Cable runs may be long and in noisy environments
Otherwise, “just UART + USB” is less headache.
2. Picking a transceiver with intent
Both competitors pushed MAX3232 / TRS32xx style parts, which is fine, but the real selection criterion should be environmental abuse and lifecycle:
-
If this goes in a lab / on a bench:
Low‑power, auto‑powerdown parts are great. Cheaper ESD is usually fine. -
If this goes into a machine, vehicle, or field install:
Look for:- Integrated ESD protection
- Fault tolerant outputs
- Specified operation over your actual temperature range
- Vendor with stable supply over years (TI, ADI, NXP, not random “no‑name” clones)
I’d actually start by writing a tiny table:
| Requirement | Value |
|---|---|
| MCU supply | 3.3 V / 5 V |
| Max cable length | e.g. 5 m / 30 m / 100 m |
| Baud rate | e.g. 9600 / 115200 / 921600 |
| Environment | Bench / industrial / automotive |
| Power budget | “doesn’t matter” / battery |
Then pick a part that satisfies all of that instead of defaulting to “whatever MAX3232 board is on sale.”
3. Connector choice with future revisions in mind
I’d slightly disagree with the idea that you must commit hard right now.
One pattern that works well:
- On PCB:
- Route a 0.1 in header with TTL UART signals
- Route the same UART to footprints for an RS‑232 transceiver + DE‑9 connector
Then:
- Rev A / protos:
- Populate only the header and use a USB‑UART dongle
- Rev B / “product-like”:
- Populate the RS‑232 parts and the panel DE‑9
This avoids painting yourself into a corner too early. You get both worlds using the same PCB.
4. If you plan for networking, decide who owns the TCP
@caminantenocturno already mentioned bridging, but the important architectural question is:
- Does the embedded device speak TCP/IP itself?
- Needs more capable MCU or separate network module
- You can implement REST, MQTT, or a binary protocol
- Or does a PC or gateway box own TCP and just talks UART locally?
- Your device stays “dumb serial”
- A PC service bridges serial to the network
The second model is where tools like Serial to Ethernet Connector are useful:
- The PC sees a real COM port
- The network sees a TCP endpoint
- Your embedded firmware only knows it is talking over RS‑232
Pros of using Serial to Ethernet Connector
- Lets you keep the device firmware simple (just serial)
- Easy to expose your RS‑232 port over LAN or VPN without redesigning hardware
- Good for remote logging, remote configuration, or sharing one serial device among multiple clients
- Works with existing serial-aware software without modification, since it still sees a COM port
Cons of using Serial to Ethernet Connector
- Requires a PC or server to stay on and act as the bridge
- Adds one more software dependency and point of failure
- Latency and jitter are now network dependent, which may matter for tight timing protocols
- Licensing / cost may be non-trivial if you scale to many ports
This tradeoff is very different from building network capability into your device, which can be more up‑front work but avoids the permanent PC in the loop.
5. Isolation and grounding: quietly important
If your RS‑232 port is going to touch equipment on a different ground, in another cabinet, or in a vehicle, I’d place more emphasis on:
- Galvanic isolation between the MCU UART and the RS‑232 transceiver
- TVS arrays on the RS‑232 side for surge / ESD
- Clear grounding strategy (which side “owns” the reference)
A lot of “mysterious bugs” on serial lines are ground shifts and surges, not baud rate issues.
6. Concrete recommendations by scenario
Scenario A: bench tool / hobby gadget, short cables, you control both ends
- Skip true RS‑232 unless you actually need it
- Expose TTL UART on header
- Use USB‑UART cable to PC
- If remote access is needed, run Serial to Ethernet Connector on a PC near the device
Scenario B: small product that plugs into PCs with USB‑RS‑232 dongles
- 3.3 V MCU
- Non‑clone TRS3232 or ADM3202‑class device
- DE‑9 female panel connector
- Route RTS/CTS to pads even if you don’t populate them yet
- ESD protection if this can leave your desk
Scenario C: industrial-ish, long cable runs, odd grounding
- Same as B but with:
- Protected / industrial grade transceiver
- Optional digital isolator between MCU UART and transceiver
- TVS diode arrays on the connector side
- Plan from day one whether you will bridge this via a PC using Serial to Ethernet Connector or similar, or embed networking directly.
If you share a bit more about cable length, environment, and whether a PC is always nearby, you can narrow this down further, but those patterns cover most sane designs without overcomplicating your first revision.
